Iron removal system



Iron removal systems

If the feed water has a high level of iron (> 200ug / l) or magan (> 50 ug / l) an iron removal system must be installed. Immediately after installation, the color of the water improves, the clarity, taste and smell also, while protecting the installations and equipment of the location that use the water.

Multifilter mix resin - EWMix

Ecomix

Multifilter system with automatic operation.

Equipment for removing iron, manganese, hardness, and organic substances.

Automatic filter that treats the water for the whole house and that is cleaned alone according to the settings of the microprocessor that assists the system. For cleaning the system is using brine.

The system is working based on a mixt of cationic resins.

Regeneration with brine and backwash + fast rinsing  of the filter medium

No consumables - the filter medium is replaced at 8-10 years

The interval of the cleaners is set in the system computer at the desired time

The operating parameters controlled by the microprocessor

Components that come in direct contact with water made of plastic or Teflon, which results in the impossibility of depositing limestone.

* depending on the quality of the raw water.

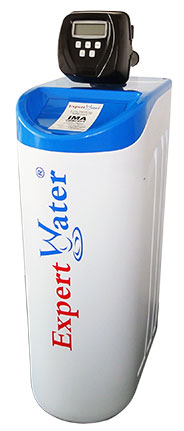

deferizator EWMIX 25Iron removal system EWMIX 25

  • Maximum flow - 1.1 m3 / h
  • Input-Output Connections: 1 ”
  • Water pressure (min / max): 2.5 - 7.5 bar
  • Filter media qty : 25 liters
  • Salt tank capacity: 100 kg
  • Maximum water temperature 49 ° C
  • Change of filtering media every 8 to 10 years
  • Max iron concentration: 15 mg / l
  • Max manganese concentration: 3 mg / l
  • Max organic substance concentration: 80 mg O2 / l







EWMIX 37Iron removal system EWMIX 37

  • Maximum flow - 1.3 m3 / h
  • Input-Output Connections: 1 ”
  • Water pressure (min / max): 2.5 - 7.5 bar
  • Filter media qty : 37 liters
  • Salt tank capacity: 100 kg
  • Maximum water temperature 49 ° C
  • Change of filtering media  every 8 to 10 years
  • Max iron concentration: 15 mg / l
  • Max manganese concentration: 3 mg / l
  • Max organic substance concentration: 80 mg O2 / l





deferizator EWMIX 50Iron removal system EWMIX 50

  • Maximum flow - 1.8 m3 / h
  • Input-Output Connections: 1 ”
  • Water pressure (min / max): 2.5 - 7.5 bar
  • Filter media qty : 50 l
  • Salt tank capacity: 100 kg
  • Maximum water temperature 49 ° C
  • Change of filter media every 8 to 10 years
  • Max iron concentration: 15 mg / l
  • Max manganese concentration: 3 mg / l
  • Max organic substance concentration: 80 mg O2 / l






Iron removal system EWMIX 75Iron removal system EWMIX 75

  • Maximum flow - 2.6 m3 / h
  • Input-Output Connections: 1 ”
  • Water pressure (min / max): 2.5 - 7.5 bar
  • Filter media qty : 75 l
  • Salt tank capacity: 100 kg
  • Maximum water temperature 49 ° C
  • Change of filter media every 8 to 10 years
  • Max iron concentration: 15 mg / l
  • Max manganese concentration: 3 mg / l
  • Max organic substance concentration: 80 mg O2 / l




deferizator EWMIX 100Iron removal system EWMIX 100

  • Maximum flow - 3.3 m3 / h
  • Input-Output Connections: 1 ”
  • Water pressure (min / max): 2.5 - 7.5 bar
  • Filter media qty: 100 liters
  • Salt tank capacity: 100 kg
  • Maximum water temperature 49 ° C
  • Change of filter media every 8 to 10 years
  • Max iron concentration: 15 mg / l
  • Max manganese concentration: 3 mg / l
  • Max organic substance concentration: 80 mg O2 / l
